Explanation
The route type that is restricted in an OSPF stub area is type 5. Type 5 LSAs are external LSAs that are generated by ASBRs to advertise routes from other routing domains or protocols into OSPF. Type 5 LSAs are flooded throughout the OSPF domain by default, except in stub areas. Stub areas are special OSPF areas that block type 5 LSAs from entering the area in order to reduce the size of the LSDB and the routing table. Stub areas only receive information about intra-area routes (type 1 and 2 LSAs), inter-area routes (type 3 LSAs), and a default route (type 3 LSA with destination 0.0.0.0/0) from the ABRs910.
References: Introduction to OSPF Stub Areas – NetworkLessons.com, What Are OSPF Areas and Virtual Links? – Cisco

Explanation
A BGP session is established between two routers by sending a unicast OPEN message. BGP uses TCP as its transport protocol, which means that before exchanging any BGP information, a TCP connection must be established between the routers. The TCP connection uses port 179 as both source and destination port. After establishing a TCP connection, each router sends an OPEN message to its neighbor, containing parameters such as BGP version number, AS number, hold time, BGP identifier, and optional capabilities. The OPEN message also serves as a keepalive message for BGP. If both routers agree on these parameters, they proceed to exchange UPDATE messages containing routing information and establish a BGP session.
A BGP router does not send a NOTIFICATION message to establish a session, but rather to terminate a session due to an error or a manual shutdown. A BGP router does not send a CONNECT message, as this is a TCP state, not a BGP message. A BGP router does not send a multicast HELLO packet, as this is an OSPF message, not a BGP message. References: BGP Neighbor States > BGP Fundamentals | Cisco Press, Demystifying BGP Session Establishments – Packet Pushers, The TCP/IP Guide – BGP Connection Establishment: Open Messages

Explanation
In OSPFv2, the route characteristic that is used to determine the best path is the cost. The cost is a metric that represents the link bandwidth, delay, reliability, or other factors. The cost is inversely proportional to the bandwidth, meaning that a higher bandwidth link has a lower cost. The cost of a route is calculated by adding the costs of all links along the path. OSPFv2 uses the following formula to calculate the cost of an interface:
Cost = Reference bandwidth / Interface bandwidth in bps
The reference bandwidth is a constant value that can be configured by the network administrator. By default, it is 100 Mbps. The interface bandwidth is the actual bandwidth of the interface in bits per second. For example, if an interface has a bandwidth of 10 Mbps, its cost would be 100 Mbps / 10 Mbps = 101415.
OSPFv2 does not use jitter, packet loss, or delay as route characteristics to determine the best path. Jitter is the variation in latency or delay between packets. Packet loss is the percentage of packets that are dropped or corrupted during transmission. Delay is the time it takes for a packet to travel from source to destination. These characteristics are not part of the OSPFv2 protocol and are not advertised in OSPFv2 LSAs1617.
References: OSPF Metric cost Calculation Formula Explained – ComputerNetworkingNotes, OSPF Cost – OSPF Routing Protocol Metric Explained – Study-CCNA, Open Shortest Path First – Wikipedia, OSPF Metric
= Cost – Cisco

Explanation
The operating system used in Ericsson Router 6000 products is ERS (Ericsson Router Software). ERS is based on IPOS (IP Operating System), which is a common operating system for Ericsson’s IP portfolio. ERS provides advanced features and functionality for IP transport, such as MPLS, Segment Routing, QoS, IPSec, synchronization, SDN, and more. ERS also supports seamless integration with Ericsson Radio System and Ericsson Network Manager.
References: Router 6000 Series – Ericsson, Router 6675 Datasheet – Winncom

Explanation
iBGP works by exchanging routing information between two or more routers within an AS. Each router sends its own routing table to its neighbors, which contains information about the networks it knows and how they can be reached from that router. By default, iBGP neighbors only share BGP routes learned from eBGP neighbors, which are routers in different ASes. This is because iBGP assumes that all routers within an AS have consistent internal routing information provided by an IGP, such as OSPF or IS-IS. Therefore, iBGP neighbors do not need to share IP address information of loopbackinterfaces or directly connected interfaces, unless explicitly configured to do so by using commands such as neighbor update-source or network.
References: iBGP Ultimate Guide | How iBGP Is Different From eBGP, Ericsson IP Networking – Routing Protocols

Explanation
The function of LSR from an LDP perspective is to distribute labels of FEC to its LDP peers. LSR stands for Label Switching Router, which is a router that forwards packets based on labels rather than IP addresses in an MPLS network. LDP stands for Label Distribution Protocol, which is a protocol that distributes labels for MPLS forwarding along the shortest path calculated by an IGP. FEC stands for Forwarding Equivalence Class, which is a group of packets that are forwarded in the same manner by an LSR. An LSR uses LDP to advertise the label mappings for each FEC to its LDP peers, which are other LSRs that have established an LDP session with it12.
References: Ldp | Microsoft Learn, Label Distribution Protocol – Wikipedia

Explanation
Two protocols that apply to both IPv4 and IPv6 are:
SNMP: This stands for Simple Network Management Protocol, which is a protocol that allows network administrators to monitor and manage network devices such as routers, switches, servers, printers, etc.
SNMP uses a client-server model, where an SNMP manager (client) can query or configure an SNMP agent (server) on a network device using SNMP messages. SNMP can operate over both IPv4 and IPv6 networks56.
DNS: This stands for Domain Name System, which is a protocol that translates human-readable domain names (such as www.example.com) into numerical IPaddresses (such as 192.0.2.1 or 2001:db8::1) that identify network devices. DNS uses a hierarchical distributed database of name servers that store and resolve domain names and IP addresses. DNS can support both IPv4 and IPv6 addresses78.
References: Simple Network Management Protocol – Wikipedia, SNMP over IPv6 – Cisco, Domain Name System – Wikipedia, DNS for IPv6 – Cisco

Explanation
A P router is a provider router that is part of the service provider’s core network in an MPLS environment. A P router does not have any customer routes or VPN information, but only has information about how to reach other P routers and PE routers in the same MPLS domain. A P router performs label switching, which means that it forwards labeled packets based on their top label in the label stack. A P router can perform two possible label actions:
Swap: The P router replaces the incoming label with a new label that corresponds to the next hop along the label-switched path (LSP). The new label is determined by looking up the label forwarding information base (LFIB) based on the incoming label and interface.
PHP: The P router removes the top label from the packet at the penultimate hop before reaching the egress PE router. This is done to avoid an extra lookup on the egress PE router, which can forward the packet based on its IP header or another label in the stack.
A P router does not perform push or drop actions on labels. A push action means adding one or more labels to the packet, which is done by an ingress PE router when initiating an LSP. A drop action means discarding a packet, which is done by any router when there is no matching entry in its LFIB or routing table. References: Provider (P) Router in IP MPLS Network – Cisco Community, MPLS Fundamentals: Forwarding Labeled Packets – Cisco Press, MPLS Label Switching | MPLS Operation | Push, Swap,Push IPCisco

Explanation

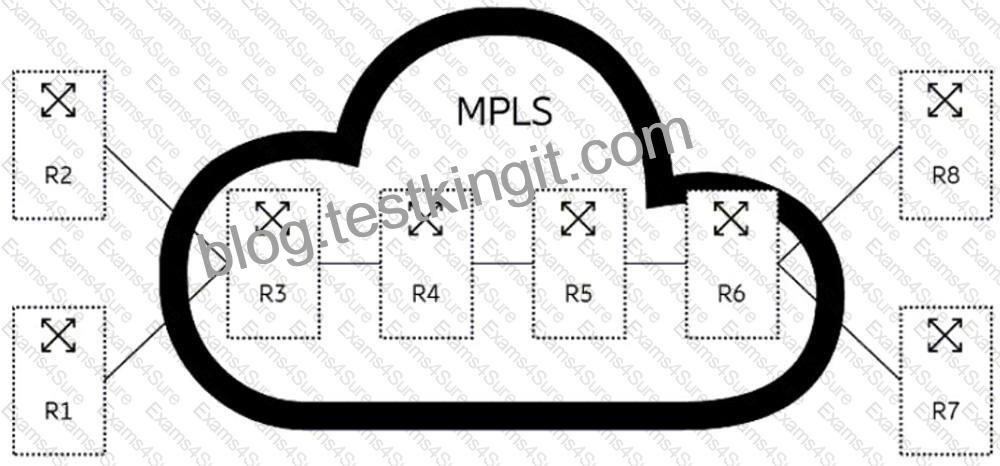

In the exhibit, the action performed by router R3 for traffic arriving from router R2 towards router R4 is PHP, which stands for penultimate hop popping. PHP is a process in which the penultimate hop router (the router before the egress router) removes the top label from an MPLS packet before forwarding it to the egress router.
This reduces the label stack depth of the packet and relieves the egress router from performing a label lookup operation. In the exhibit, router R3 is the penultimate hop for traffic arriving from router R2 towards router R4. Router R3 will perform a PHP operation, removing the top label from the incoming packet before forwarding it to router R478.
References: PHP Tutorial – W3Schools, PHP: Downloads

Explanation
LDP relies on IGP for all routing-related decisions. LDP is a protocol that distributes labels in an MPLS environment, but it does not perform any routing functions. LDP uses the underlying routing information provided by an IGP, such as OSPF or IS-IS, to forward label packets. LDP and IGP do not exchange their databases at regular intervals, but rather use hello messages to maintain adjacencies and sessions. References: Ericsson IP Networking – Routing Protocols, Label Distribution Protocol – Wikipedia

Explanation
The code that is commonly used to assign higher priority to VoIP traffic is EF, which stands for Expedited Forwarding. EF is a per-hop behavior (PHB) defined by the Differentiated Services (DiffServ) model for QoS.
EF provides low delay, low jitter, and low loss for real-time applications such as VoIP. EF is marked by setting the DSCP value to 101110, which corresponds to decimal 4678. AF31, which stands for Assured Forwarding class 3 low drop probability, is another PHB defined by DiffServ, but it provides lower priority than EF. AF31 is marked by setting the DSCP value to 011010, which corresponds to decimal 2678. DF, which stands for Default Forwarding, is a PHB defined by DiffServ that provides best-effort service for unmarked traffic. DF is marked by setting the DSCP value to 000000, which corresponds to decimal 078.
AF11, which stands for Assured Forwarding class 1 low drop probability, is another PHB defined by DiffServ, but it provides lower priority than EF and AF31. AF11 is marked by setting the DSCP value to 001010, which corresponds to decimal 1078.
References: Differentiated services – Wikipedia, Solved: Cisco VoIP Phone traffic marking – Cisco Community

Explanation
P routers forward packets based on the LSP label. The LSP label is the label that corresponds to the label-switched path (LSP) that is established between two PE routers in an MPLS network. The LSP label is also called the outer label or the transport label, because it is used to transport packets across the MPLS core network. P routers are also called LSRs (label switch routers) or transit routers, because they switch packets based on their labels or remove the labels. P routers do not need to look at the IP header or any other information in the packet, except for the top label in the label stack. P routers perform one of three possible operations on labels: swap, pop, or PHP (penultimate hop popping). In a swap operation, the label is swapped with a new label, and the packet is forwarded along the path associated with the new label. In a pop operation, the label is removed from the packet, and the packet is forwarded based on its IP header or another label in the stack. In a PHP operation, the label is removed from the packet at the last P router before reaching the egress PE router, and the packet is forwarded without any label to the egress PE router.
The LSP label is different from other types of labels that may be used in MPLS networks, such as VPN labels or service labels. These labels are used to identify different VPNs or services that run over MPLS networks, such as Layer 2 VPNs, Layer 3 VPNs, traffic engineering, or QoS. These labels are also called inner labels or payload labels, because they are related to the payload of the packet. These labels are not used by P routers for forwarding decisions, but only by PE routers for delivering packets to their destinations.
Therefore, the answer is C.
References: Ericsson IP Networking – Routing Protocols, MPLS Fundamentals: Forwarding Labeled Packets – Cisco Press, MPLS Labels and Devices – NetworkLessons.com, Multiprotocol Label Switching – Wikipedia, VPN Packet Forwarding > MPLS/VPN Architecture Overview | Cisco Press, Basic concepts – Hewlett Packard Enterprise

Explanation
The correct ordering (outer to inner) of packet headers in an IP/MPLS packet is Ethernet, MPLS, IP. An IP/MPLS packet is a packet that is encapsulated with an MPLS label stack between the Ethernet header and the IP header. The Ethernet header contains the source and destination MAC addresses and the EtherType field that indicates the type of the payload. The MPLS label stack contains one or more labels that are used for forwarding decisions by the MPLS routers. Each label consists of four fields: label value, experimental bits, bottom of stack, and time to live. The IP header contains the source and destination IP addresses and other information for routing and fragmentation. The order of the headers is important because it determines how the packet is processed by different devices in the network12.
References: MPLS Label Stack – Cisco, MPLS Fundamentals: 3 – MPLS Packet Forwarding

Explanation
Spanning-Tree is used for Ethernet loop avoidance. Spanning-Tree is a protocol that prevents loops in Ethernet networks by creating a logical tree topology of the network switches. Spanning-Tree blocks some of the redundant links between switches to ensure that there is only one active path between any two nodes in thenetwork. Spanning-Tree also detects and recovers from link failures by activating alternative paths when needed56.
References: Network loops and loop avoidance – Medium, Spanning Tree Protocol – Wikipedia

Explanation
The Area ID to which the router belongs is 49.00F0.0100. The Area ID is a variable-length field in the NSAP address that identifies the area to which the router belongs. The Area ID can be between 1 and 13 bytes long, but it must start and end with an octet (8 bits). The NSAP address is composed of three parts: the authority and format identifier (AFI), the area ID, and the system ID. The AFI is a one-octet field that indicates the format and authority of the rest of the address. The system ID is a fixed-length field of six octets that uniquely identifies the router within an area. The NSAP address also has a network selector (NSEL) field, which is a one-octet field that identifies the network layer service to which a packet should be sent. For IS-IS routers, the NSEL must always be 00.
In this question, the NSAP address is 49.00F0.0100.5012.3010.00. This means that:
The AFI is 49, which indicates a private address.
The Area ID is 00F0.0100, which is four octets long and starts and ends with an octet.
The system ID is 5012.3010, which is six octets long and identifies the router within the area.
The NSEL is 00, which indicates IS-IS.
Therefore, the answer is B.
References: Ericsson IP Networking – Routing Protocols, IS-IS NSAP address – Cisco Community, Understanding IS-IS NSAP Addresses – Todd Lammle, LLC, IS-IS – Nokia, Network service access point address – Wikipedia

Explanation

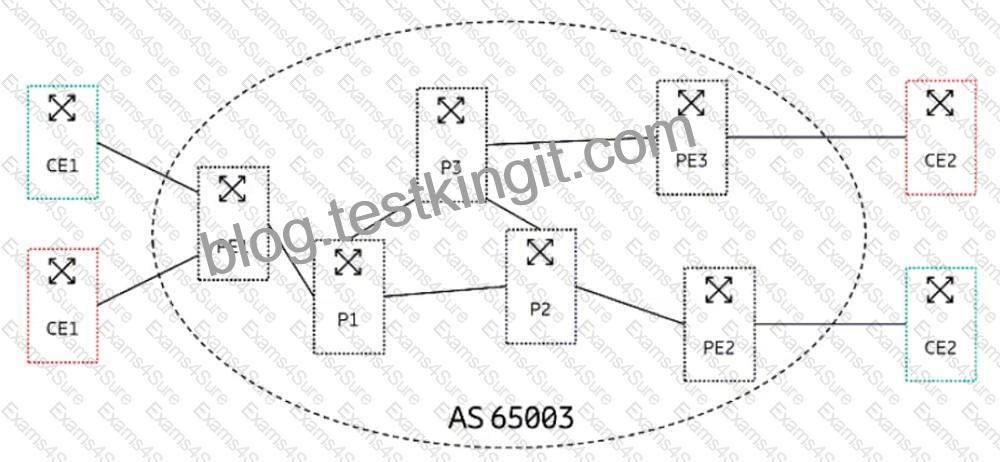

Referring to the exhibit, the correct statement is that the service provider’s P routers are not aware of the customers’ routes. This is because P routers only need to forward MPLS packets based on their labels, without looking into their IP headers or VPN information. The P routers do not have any VRFs configured for the customers, nor do they participate in MP-BGP sessions with other PE routers. The PE routers are responsible for maintaining VRFs for each customer and for exchanging VPN routes with other PE routers using MP-BGP910.
References: Layer 3 VPNs (L3VPN) – Cisco, MPLS VPN – Wikipedia

Explanation
The router function that advertises external routes in OSPF is ASBR, which stands for Autonomous System Boundary Router. An ASBR is a router that connects an OSPF domain to another routing domain, such as another OSPF domain or a different routing protocol domain. An ASBR can redistribute routes from other routing domains into OSPF as external routes, which are carried in type 5 or type 7 LSAs. External routes have two types: E1 and E2. E1 routes include the cost from the ASBR to the destination, while E2 routes only include the cost advertised by the ASBR34.
References: OSPF External Routes IpCisco, OSPF External Route selection algorithm – Cisco Community

Explanation
A network operator who wants to make sure voice data is prioritized should assign it to Ethernet traffic class 6.
Ethernet traffic class is a term used to refer to the priority code point (PCP) field in the VLAN header of an Ethernet frame. The PCP field is a 3-bit field that can encode up to eight different priority levels, ranging from
0 (lowest) to 7 (highest). The PCP values can be mapped to different types of traffic according to their QoS requirements. The recommended mapping is as follows :
PCP 0: Best effort (default)
PCP 1: Background
PCP 2: Spare
PCP 3: Excellent effort
PCP 4: Controlled load
PCP 5: Video
PCP 6: Voice
PCP 7: Network control
Voice data is a type of real-time traffic that requires the highest priority and lowest delay in the network.
Therefore, it should be assigned to PCP 6, which corresponds to Ethernet traffic class 6 .
References: [IEEE 802.1Q – Wikipedia], [What is “link aggregation” and how does it benefit your network? | PC Gamer]

Explanation
Within an IGP area, routers advertise information about themselves and relay information delivered by neighbors. This is how link-state routing protocols such as OSPF and IS-IS work. They flood information about the network topology to all routers in the same area or domain. That information is then used to build a complete network connectivity map and to calculate the shortest path to destinations. Routers do not summarize or discard information within an area, unless they are configured to do so by some filtering mechanism. References: Ericsson IP Networking – Routing Protocols, IP Routing: ISIS Configuration Guide – IS-IS Overview and Basic Configuration

Explanation
Peers recognize each other’s ability to use MP-BGP extensions by advertising the ability using the capabilities field during the session establishment. MP-BGP is an extension to BGP that allows BGP to carry routing information for multiple network layer protocols, such as IPv6, VPNv4, multicast, etc. To support MP-BGP, peers need to exchange their capabilities during the session establishment phase, which consists of three steps:
open, keepalive, and update. In the open message, peers can include an optional parameter called capabilities, which indicates what kind of address families and subsequent address families they can support. If both peers agree on a common set of capabilities, they can proceed to exchange routing information for those address families using update messages56.
References: Use of MP-BGP Extensions for IPv6 Interdomain Routing, MP-EBGP Configuration Example – Cisco

Explanation
The CLI command to obtain the software version in Ericsson Router 6000 products is show version. This command displays information about the software release, the hardware model, the serial number, the uptime, and the boot image of the router. References: [ERICSSON SMARTEDGE 600 HARDWARE MANUAL Pdf Download | ManualsLib], Ericsson Router 6000 Series – Ericsson
