Cisco 300-425 Exam Questions (Updated 2022) 100% Real Question Answers [Q54-Q75]

NEW QUESTION 54
A customer is concerned about mesh backhaul link security. Which level of encryption does the backhaul link use?

hash

AES

WEP

3DES

NEW QUESTION 55
An engineer is designing an outdoor mesh network to cover several sports fields. The core of the network is located In a building at the entrance of a sports complex Which type of antenna should be used with the RAP for backhaul connectivity?

5 GHz. 8-dBi omnidirectional antenna

2.4 GHz. B-dBi patch antenna

2 4 GHz. 14-dBi omnidirectional antenna

5 GHz. 14-dBi patch antenna

NEW QUESTION 56
An engineer must configure the virtual IP address on multiple controllers in a mobility group. Which rule must the engineer follows to ensure proper roaming?

Ensure that the DNS entry is tied to the virtual IP address of the WLC.

Use a unique IP address for each WLC.

Ensure that the DNS Host Name field is defined.

Use the same IP address for each WLC.

NEW QUESTION 57

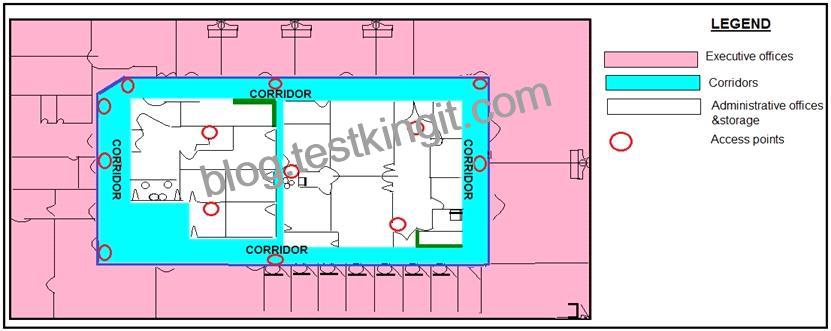

Refer to the exhibit.

What is the main reason why the Wi-Fi design engineer took a different approach than installing the APs in the offices, even though that installation provides better coverage?

aesthetics

transmit power considerations

antenna gain

power supply considerations

NEW QUESTION 58
You made changes to a VLAN, but the changes were not propagated to the other switches in the VTP domain.

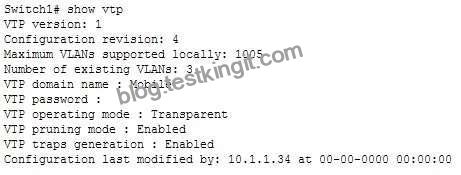

You enter a show vtp command at the switch where the changes were made, which displays the following output:

What should you do to solve this problem?

Disable VTP pruning.

Change the VTP operating mode to server.

Upgrade the VTP version to version 2.

Upgrade the VTP version to version 3.

NEW QUESTION 59
Where must the APs be mounted when used in a high-density wireless network to provide 6 dB to 20 dB of attenuation to a cell?

in the aisle

under the seat

above the stage

under the stage

NEW QUESTION 60
Clustering Cisco WLCs into a single RF group enables the RRM algorithms to scale beyond the capabilities of a single Cisco WLC. How many WLC and APs in an RF group can the controller software scale up to in WLC release 8.9 depending on the platform?

up to 20 WLCs and 1000 APs

up to 20 WLCs and 3000 APs

up to 20 WLCs and 4000 APs

up to 20 WLCs and 6000 APs

NEW QUESTION 61
An engineer is performing a predictive wireless design for a medical treatment environment, which requires data and voice services. What is the minimum requirement for the design?

overlapping -72 dBm coverage from two access points

continuous -67 dBm coverage from one access point

continuous -72 dBm coverage from one access point

overlapping -67 dBm coverage from two access points

NEW QUESTION 62
Which of the following statements best describes the purpose of ARP with respect to CEF?

ARP is used to build the FIB.

ARP is used to reindex the routing table.

ARP is used to build the adjacency table.

ARP is used to decrease the amount of time spent searching for an entry within a routing table.

Address Resolution Protocol (ARP) is used by Cisco Express Forwarding (CEF) to build the adjacency table.
CEF is the switching method used by Catalyst switches. Unlike traditional multilayer switching (MLS), which merely caches Layer 3 information received when traffic passes through a switch, CEF attempts to optimize the routing process by reindexing the routing table and then building an adjacency table based on the routing table information. The type of MLS performed by CEF is called topology-based switching; traditional MLS is known as route caching, demand-based switching, and flow-based switching.
The routing table is reindexed by using a binary search method. The reindexed routing table is called the forwarding information base (FIB). Reindexing the routing table reduces the amount of time spent searching for an entry within a routing table.
After the FIB is created, an adjacency table is created to map the appropriate Layer 2 next-hop address or addresses to each FIB entry. ARP is used to retrieve the Layer 2 address information. If multiple Layer 2 next- hop addresses are available for an entry in the FIB, then CEF can employ load balancing for packets headed to that destination.
The final result is a single database of routing information (FIB) is built for the switching hardware.
Two extremely useful commands for verifying CEF are:
show ip cef network address – displays entries in the forwarding information base (FIB) show adjacency detail | begin adjacency address – shows information about a specific adjacency in the adjacency table Both commands are shown below with explanations.
SwitchA# show ip cef 192.168.6.0
192.168.6.0/24, version 302, cached adjacency 192.168.166.5, 0 packets, 0 bytes Via 192.168.166.5, VLAN 185, 0 dependencies Next-hop 192.168.166.5, VLAN 185 Valid cached adjacency Above it can be determined that there is a valid CEF entry for the destination network 192.168.6.0 and that there is a valid cached adjacency to the 192.168.166.5 next hop IP address.
In the command output below, it can be determined that 005565946856 is the MAC address of the
192.168.166.5 next-hop address:
SwitchA# show adjacency detail | begin 192.168.166.5
IP VLAN 185 192.168.166.5(6) 0 packets, 0 bytes
005565946856
Objective:
Layer 2 Technologies
Sub-Objective:
Configure and verify switch administration
References:
Cisco > Cisco IOS IP Switching Configuration Guide, Release 12.4 > Part 1: Cisco Express Forwarding > Cisco Express Forwarding Overview > Cisco Express Forwarding Adjacency Tables Overview Cisco > Cisco IOS IP Switching Command Reference > show adjacency through show ipv6 cef with source > show adjacency Cisco > Cisco IOS IP Switching Command Reference > show adjacency through show ipv6 cef with source > show ip cef

NEW QUESTION 63
An engineer is designing a wireless deployment for a university auditorium. Which two features can be used to help deal with the issues introduced by high AP count? (Choose two.)

TSPEC

RXSOP

TPC

LSS

DFS

NEW QUESTION 64
Which feature is supported with the PPPoE client?

DMVPN

QoS on the dialer interface

MLPPP on the interface

Dial-on-demand

NEW QUESTION 65
A network engineer is working on a design for a wireless network that must support data, voice, and location services. To support these services, which access point placement must the engineer use?

corner only

perimeter and corner

perimeter only

indoor and outdoor

NEW QUESTION 66

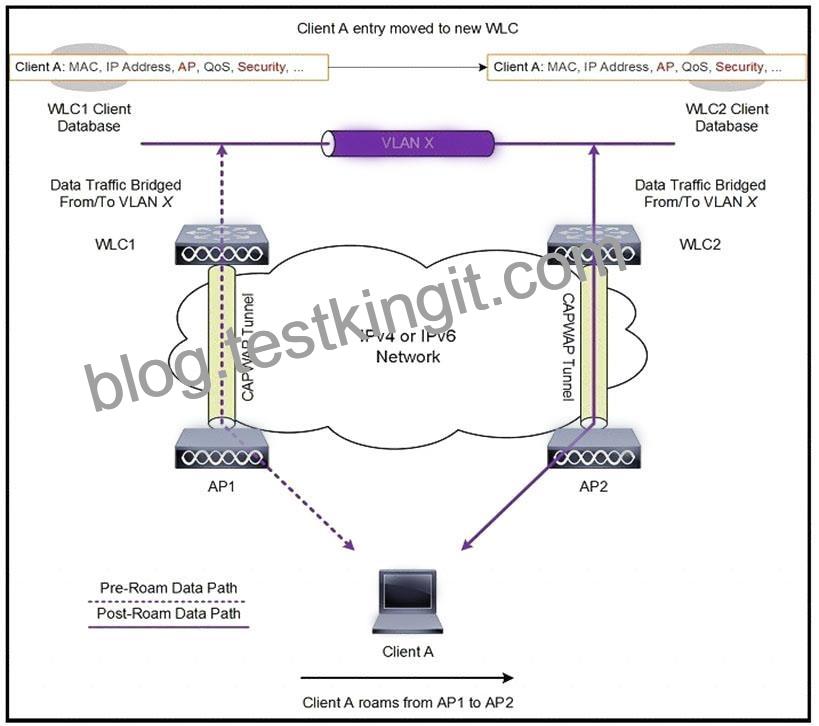

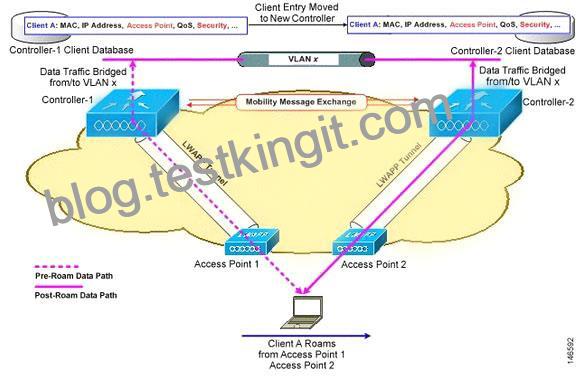

Refer to the exhibit.

A client roams between two APs that are registered to two different controllers, where each controller has an interface in the client subnet. Both controllers are running AireOS. Which scenario explains the client roaming behavior?

Controllers exchange mobility control messages (over UDP port 16666) and the client database entry is moved from the original controller to the new controller.

Controllers do not exchange mobility control messages (over UDP port 16666) and the client database, entry is not moved from the original controller to the new controller.

Controllers exchange mobility control messages (over UDP port 16666) and a new client session is started with the new controller.

Controllers exchange mobility control messages (over UDP port 16666) and the client database entry is tunneled from the original controller to the new controller.

NEW QUESTION 67
A customer has noticed that Client Band Select is enabled and no clients are utilizing the 5 GHz band. Which three parameters must be met to ensure that wireless clients use the 5 GHz band? (Choose three.)

Ensure that channel bonding is enabled on the WLAN.

Ensure that the co-channel interference has not exceeded -85 dBm.

Ensure that the UNII-2 extended channels are enabled on the 802.11a radios.

Ensure that the client is receiving RSSI above the minimum band select RSSI threshold.

Ensure that the client is dual-band capable.

Ensure that the WLAN has 802.11a enabled.

NEW QUESTION 68
A network engineer is working on a design for a wireless network that must support data, voice, and location services. To support these services, which access point placement must the engineer use?

corner only

perimeter and corner

perimeter only

indoor and outdoor

NEW QUESTION 69
An engineer has performed a predictive site survey for high-speed data and voice in an indoor office. What is the recommended data rate with -67 dBm signal level for optimal VoWLAN design?

6 Mbps on 802.11 bgn

24 Mbps on 802.11 bgn

12 Mbps on 802.11 an

24 Mbps on 802.11 an

NEW QUESTION 70
Which two considerations must a network engineer have when planning for voice over wireless roaming?
(Choose two.)

Full reauthentication introduces gaps in a voice conversation.

Roaming time increases when using 802.1x + Cisco Centralized Key Management.

Roaming occurs when the phone has seen at least four APs.

Roaming occurs when the phone has reached -80 dBs or below.

Roaming with only 802.1x authentication requires full reauthentication.

NEW QUESTION 71
An engineer must configure the virtual IP address on multiple controllers in a mobility group. Which rule must the engineer follows to ensure proper roaming?

Ensure that the DNS entry is tied to the virtual IP address of the WLC.

Use a unique IP address for each WLC.

Ensure that the DNS Host Name field is defined.

Use the same IP address for each WLC.

NEW QUESTION 72
Which two criteria must be considered when conducting an outdoor bridge site survey? (Choose two.)

near-far effect

weather

traffic lights

power lines

Fresnel zone

NEW QUESTION 73
Guest anchoring is configured for a newly created SSID for your company. It has been noticed that the mobility tunnels are not up, and that MPING fails from your foreign WLC to the anchor WLC. What is the reason that it is failing?

A rule is needed at the firewall to allow UDP port 16666 for communication to work.

A rule is needed at the firewall to allow UDP port 97 for communication to work.

A rule is needed at the firewall to allow TCP port 97 for communication to work.

A rule is needed at the firewall to allow TCP port 16666 for communication to work.

NEW QUESTION 74
During a client roaming event, which device is responsible for communicating the new Layer 2 EID mapping of a wireless supplicant to the fabric domain?

WLC

BN

CP2

CP1

NEW QUESTION 75
Which statement about AP failover priority for access points when configured with priority 1 or 4 is true?

When configured with priority 1, the access point is assigned with the highest priority level and it is marked as critical. This access point fails over before other access points with the lower priority when there is primary controller failure.

When configured with priority 4, the access point is assigned with the highest priority level and it is marked as critical. This access point fails over before other access points with the lower priority when there is primary controller failure.

When configured with priority 4, the access point is assigned with the lowest priority level and it is marked as low. This access point fails over after other access points with the higher priority when there is primary controller failure.

When configured with priority 1, the access point is assigned with the medium priority level and it is marked as medium. This access point fails over after other access points with the higher priority when there is primary controller failure.
